3213-BD-XL-TVH-L285

€103.10

Ready for dispatch within 3-5 working days: 67

Product number: 1040801

Manufacturer: FAG

EAN: 4012802645590

Weight: 1.63 kg

Product information "3213-BD-XL-TVH-L285"

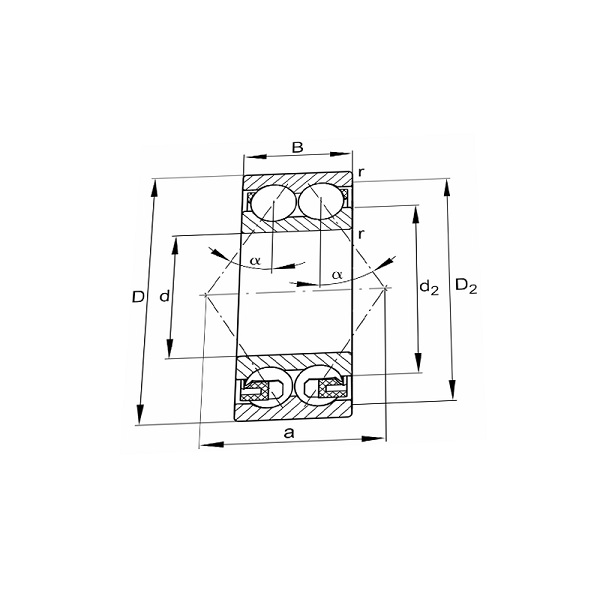

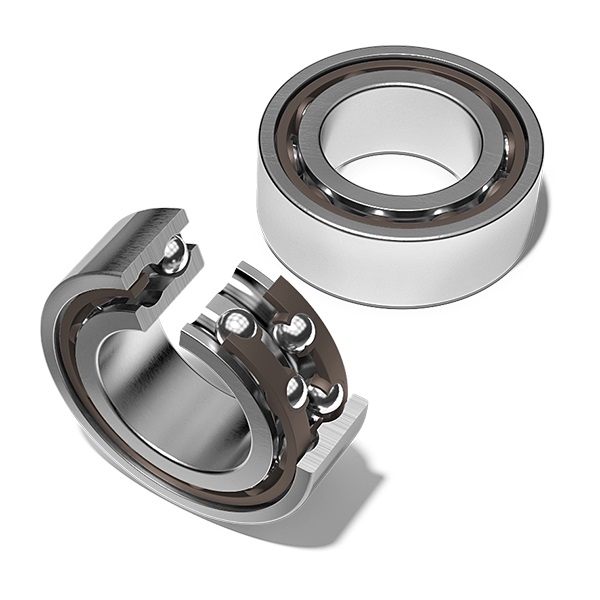

Double row angular contact ball bearing 32.., radial ball bearings, O-arrangement design with contact angle α = 30°, without filling slot, open design with plastic cage, FAG

Bore diameter:	65
Outer diameter:	120
Width:	38,1
Cage:	polyamide, hard fabric
Bearing clearance:	CN (normal)
Material:	standard
