BEF05-60-502

€24.42

Ready for dispatch within 2-3 working days: 301

Product number: 1002327

Manufacturer: Durbal

Weight: 0.02 kg

Product information "BEF05-60-502"

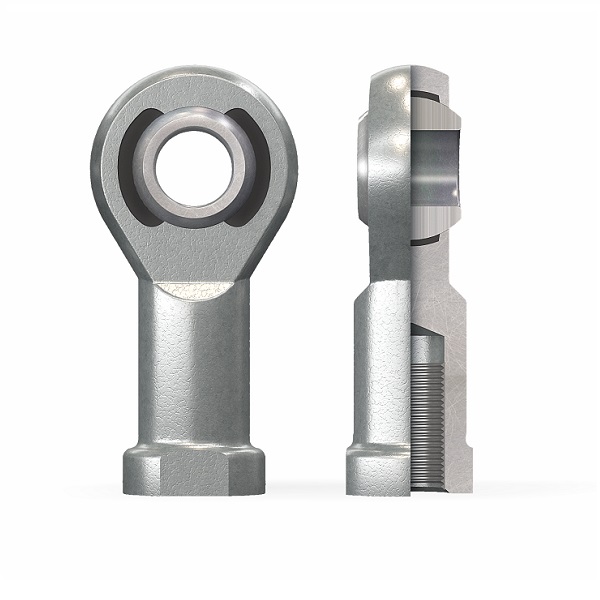

Heavy-duty rod end BEF.. in stainless steel with integral spherical-plain bearing, polyamid-PTFE-fibreglass-compound race Durbal-Glide, series K, female left hand thread, maintenance-free, Durbal

Bore diameter:	5
Outer diameter:	18
Width:	8
Height:	36
Thread type:	female thread left
Thread size:	M5
Material:	сorrosion-resistant

Alternative articles to "BEF05-60-502"*

GILRSW5RR
KIL5-DNRBF
SFLRCP5-IR
GIKSL5PS
SRILKB5FG

* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Heavy-Duty Rod Ends BEF-NIRO - Classic Line - Durbal
Rod Ends & Spherical-Plain Bearings - Durbal - Product Catalogue
