BEF08-20-502

Skip image gallery
BEF08-20-502
BEF08-20-502
BEF08-20-502
BEF08-20-502

€16.67

Ready for immediate despatch: 7

Ready for dispatch within 2-3 working days: 450

Product number: 1002296
Manufacturer: Durbal
Weight: 0.04 kg

Product information "BEF08-20-502"

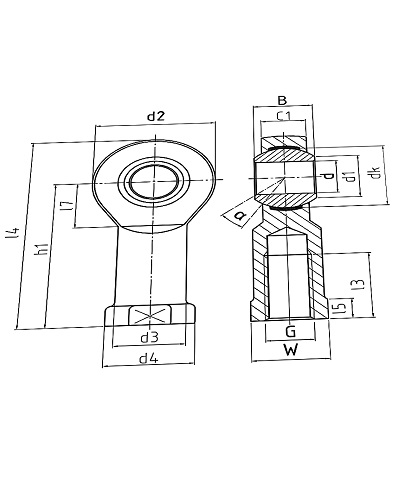

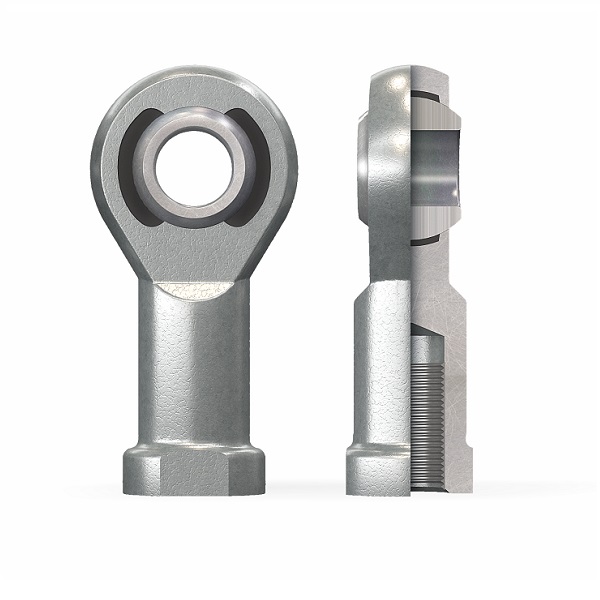

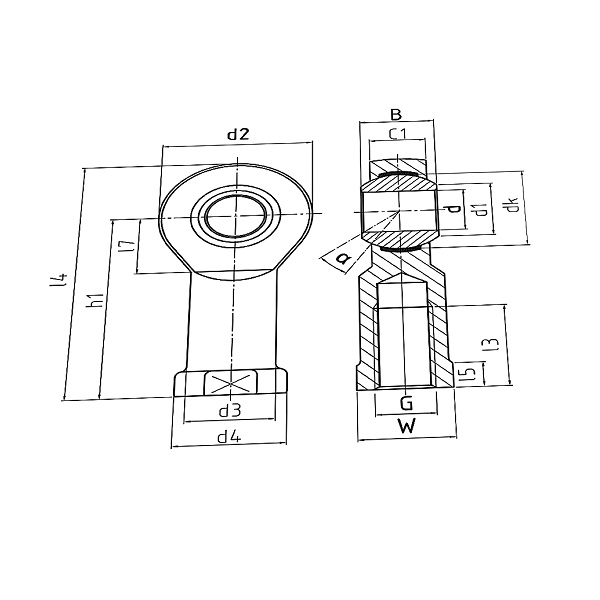

Heavy-duty rod end BEF.. with integral spherical-plain bearing, polyamid-PTFE-fibreglass-compound race Durbal-Glide, series K, female left hand thread, galvanized, maintenance-free, Durbal
Bore diameter: 8
Outer diameter: 24
Width: 12
Height: 48
Thread type: female thread left
Thread size: M8
Material: standard
Alternative articles to "BEF08-20-502"*
GILSW8
KIL8-D
SFLCP8
GIKL8PW
SILKB8F
* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.
