BRM20-60-501

€239.57

Ready for immediate despatch: 6

Ready for dispatch within 2-3 working days: 46

Product number: 1002001

Manufacturer: Durbal

Weight: 0.34 kg

Product information "BRM20-60-501"

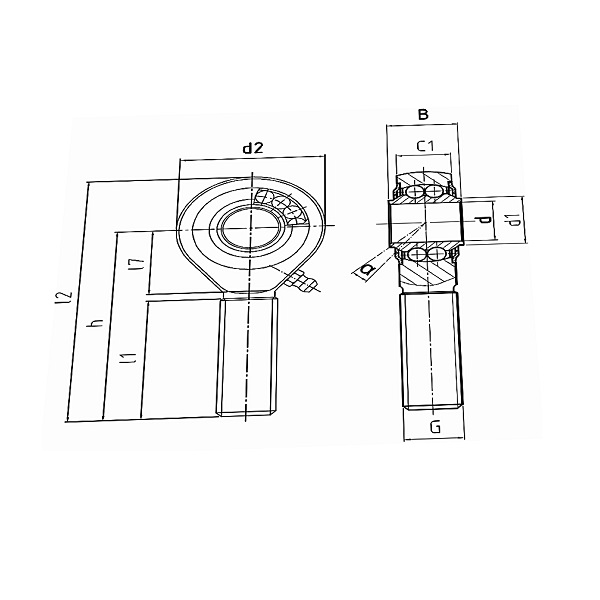

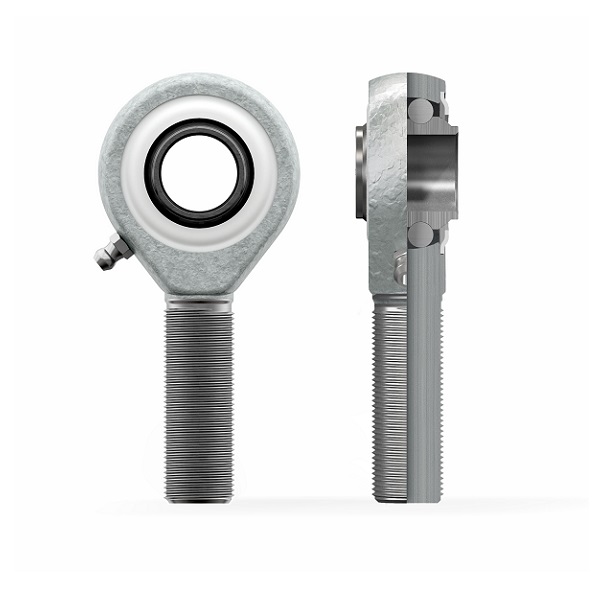

Heavy-duty rod end BRM.. in stainless steel, with integral self-aligning ball bearing, series K, male right hand thread, cage design, with shields on both sides, relubricatable, Durbal

Bore diameter:	20
Outer diameter:	50
Width:	25
Height:	103
Sealing:	cover shields on both sides
Thread type:	male thread right
Thread size:	M20x1,5
Cage:	full-complement
Material:	сorrosion-resistant

Alternative articles to "BRM20-60-501"*

KUA20-ZZ-NR
63299520

* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Heavy-Duty Rod Ends BRM-NIRO - Premium Line - Durbal
Rod Ends & Spherical-Plain Bearings - Durbal - Product Catalogue
