CLK603 62x110

€55.00

Ready for dispatch within 3-5 working days: 270

Average lead time from new production (poss. with MOQ) in working days: 40-60

Product number: 1066824

Manufacturer: CMT Line

Weight: 1.3 kg

Product information "CLK603 62x110"

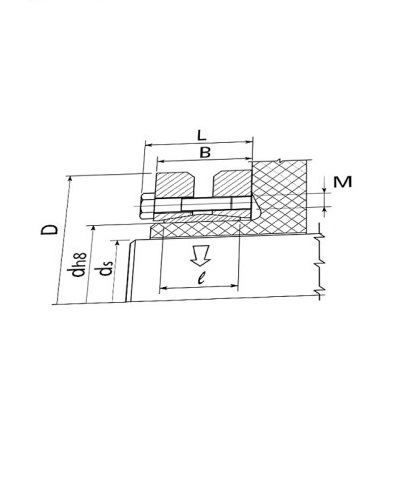

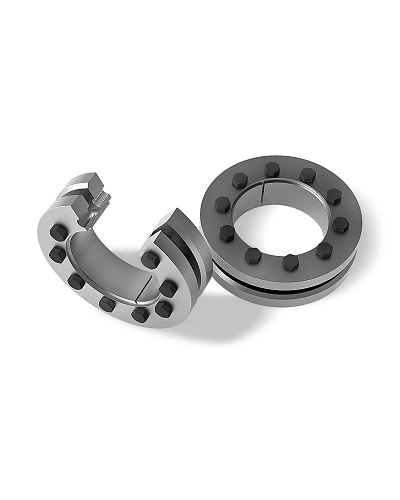

External clamping set (shrink disc) CLK603 - standard series, three-part design, backlash-free shaft-hub connection, self-centering design, mounting without axial hub displacement, for medium to high torques, CMT Line

Bore diameter:	62(48-50-52)
Outer diameter:	110
Width:	30
Thread size:	M6
T (Nm):	1800-2200-2400
F (kN):	100-110-120
Material:	standard

Alternative articles to "CLK603 62x110"*

Ringfeder - RfN 4071
Bikon - Bikon 1029 - 1029.1
Tollok - TLK 603
KTR - KTR 603
Ringspann - RLK 603

* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
