KR90-PP

€123.48

Ready for dispatch within 1-2 working days: 84

Average lead time from new production (poss. with MOQ) in working days: 100-120

Product number: 1069103

Manufacturer: IDC

Weight: 1.942 kg

Product information "KR90-PP"

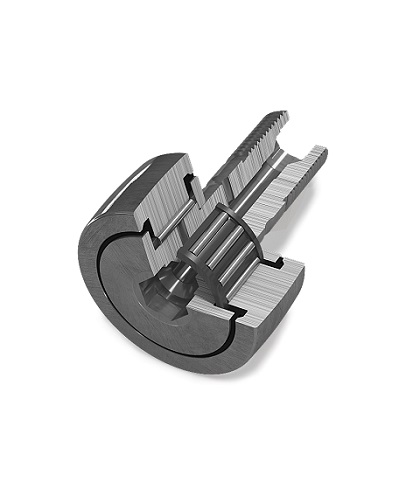

Track roller with solid roller stud, with cage-guided needles and profiled outer ring (contact optimized surface), with hexagon socket, seals on both sides, IDC

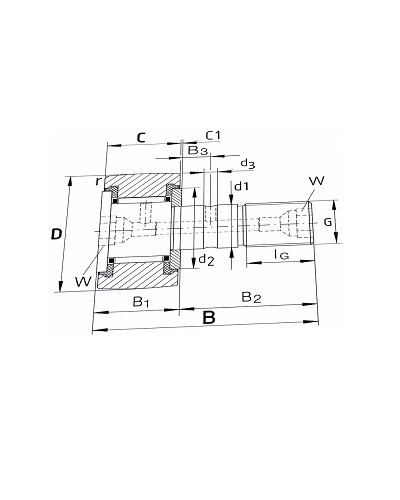

Outer diameter:	90
Lenght:	100
Sealing:	seals on both sides
Thread size:	M30x1,5
Material:	standard

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Yoke Type and Stud Type Track Rollers - IDC
