NATR6-PP

€14.00

Ready for dispatch within 1-2 working days: 148

Average lead time from new production (poss. with MOQ) in working days: 100-120

Product number: 1069284

Manufacturer: IDC

Weight: 0.019 kg

Product information "NATR6-PP"

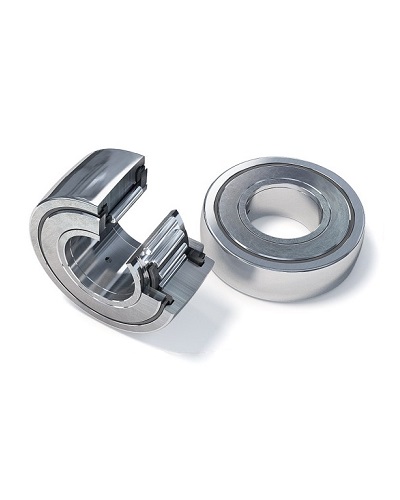

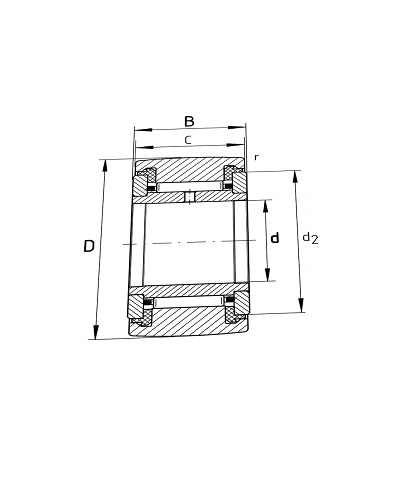

Yoke type track roller with profiled outer ring (contact optimized surface), with inner ring and needle cage, seals on both sides, IDC

Bore diameter:	6
Outer diameter:	19
Width:	12
Sealing:	seals on both sides
Cage:	steel cage
Material:	standard

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Yoke Type and Stud Type Track Rollers - IDC
