ULV28-1840

€360.16

Average lead time from new production (poss. with MOQ) in working days: 10-30

⚠ Out of stock? Available on order. Get in touch with us!

Product number: 1073261

Manufacturer: Rollon

Weight: 1.84 kg

Product information "ULV28-1840"

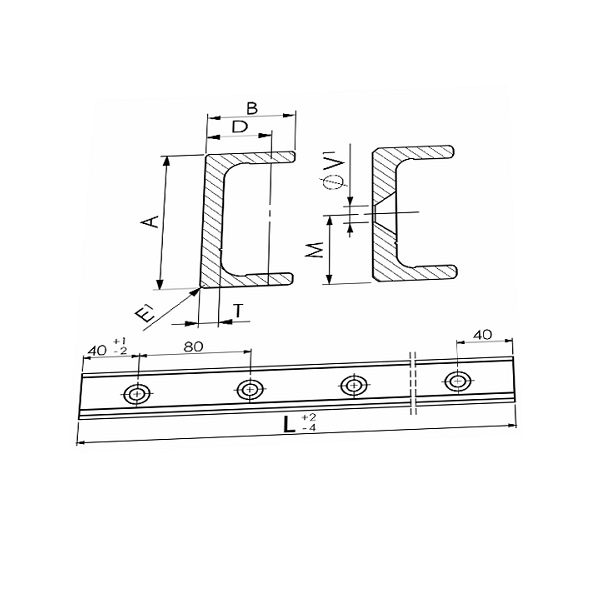

Floating bearing rail ULV28, linear guideways with C-profile, Compact Rail, made from cold-drawn carbon steel, induction-hardened and ground raceways, zinc-plated, V-fixing holes set as standard (for countersunk head screws), Rollon

Size:	28
Width:	28
Height:	12,25
Lenght:	1840
Thread size:	M5
Material:	standard

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Self-aligning linear guides - Compact Rail - Rollon
Linear Line - Rollon - General catalogue
