BRF3/4-00-501
Product number:
1002032
Manufacturer:
Durbal
Weight:
0.39 kg
Product information "BRF3/4-00-501"

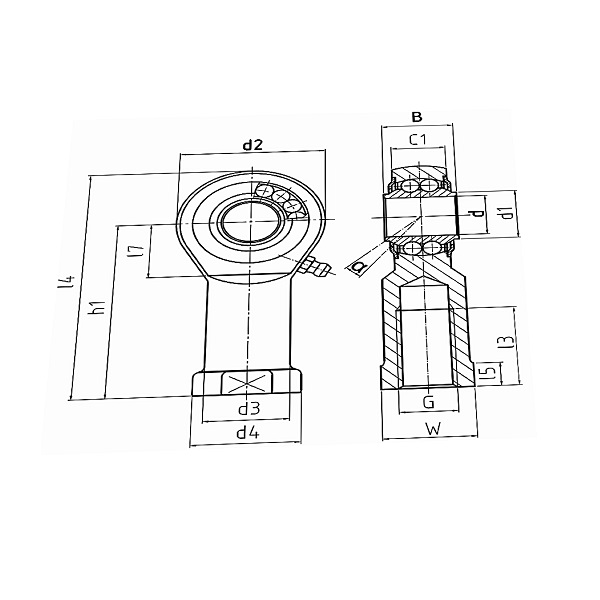

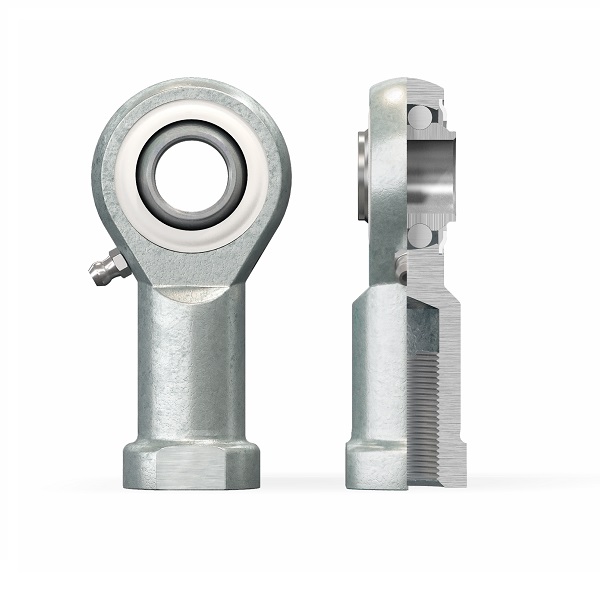

Heavy-duty rod end BRF.. with integral self-aligning ball bearing, inch dimensions, female right hand thread, cage design, galvanized, with shields on both sides, relubricatable, Durbal
| Bore diameter: | .750 |
|---|---|
| Outer diameter: | 1.750 |
| Width: | .984 |
| Height: | 3.926 |
| Sealing: | cover shields on both sides |
| Thread type: | female thread right |
| Thread size: | 3/4-16 UNF |
| Cage: | full-complement |
| Material: | standard |
