CLK110 130x165
€540.00
Available within 3-5 working days: 4
Delivery time from new production (poss. with MOQ) in working days: 40-60
Product number:
1065673
Manufacturer:
CMT Line
Weight:
11.9 kg
Product information "CLK110 130x165"

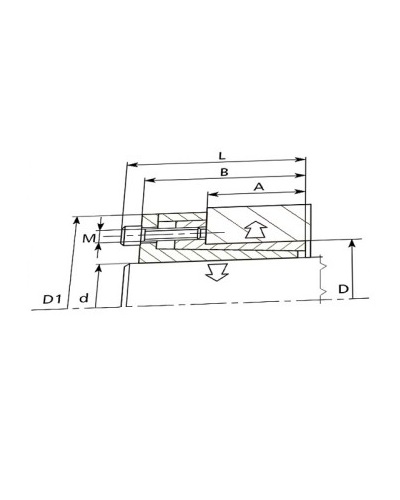

High-quality internal clamping set CLK110, backlash-free shaft-hub connection, self-centering design: radially flat - axially long, mounting without axial hub displacement, for medium to high torques, CMT Line
| Bore diameter: | 130 |
|---|---|
| Outer diameter: | 165 |
| Width: | 128 |
| Thread size: | M12 |
| T (Nm): | 25000 |
| F (kN): | 389 |
| Material: | standard |
Alternative articles to "CLK110 130x165"*
| Ringfeder - RfN 7110 |
| Bikon - Bikon 8000 |
| Tollok - TLK 110 |
| KTR - KTR 250 |
| Ringspann - RLK 110 |
* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
