DC25.95-D-NX-3360
Product number:
1111698
Manufacturer:
Nadella
Weight:
45.528 kg
Product information "DC25.95-D-NX-3360"

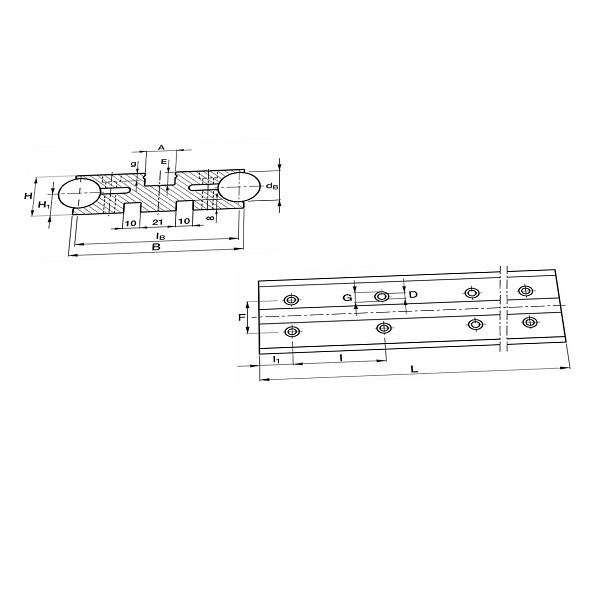

Guide rail DC25.., low series, wide aluminium strip with two fixed standard 25mm diameter rust-resistant steel shafts (NX) as raceways opposite each other, mounting holes: double row - standard (D), Nadella
| Design: | BASE-LINE |
|---|---|
| Size: | 25 |
| Bore diameter: | 6,5 |
| Width: | 101 |
| Height: | 33 |
| Lenght: | 3360 |
| Material: | standard |
