DC25.95-D-NX-4560
Product number:
1111706
Manufacturer:
Nadella
Weight:
61.788 kg
Product information "DC25.95-D-NX-4560"

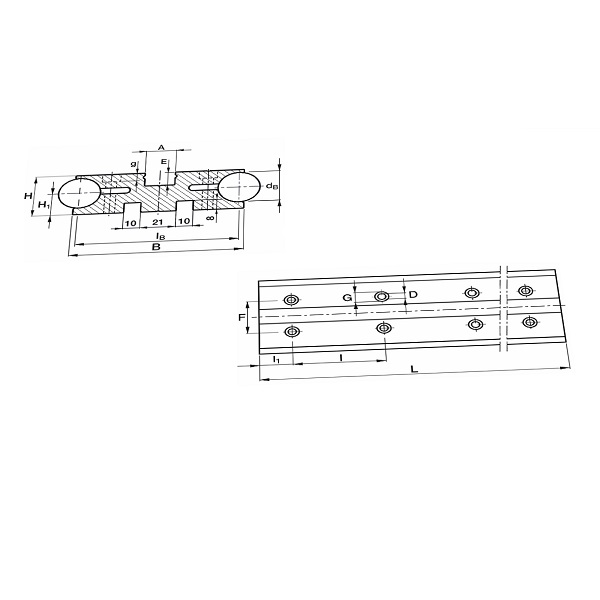

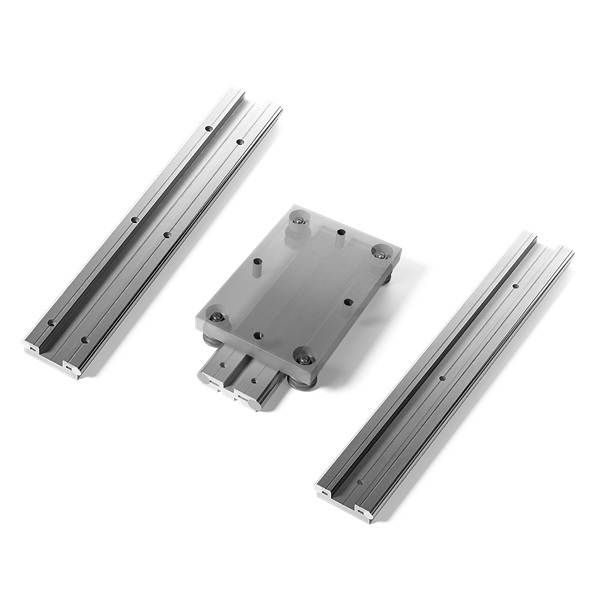

Guide rail DC25.., low series, wide aluminium strip with two fixed standard 25mm diameter rust-resistant steel shafts (NX) as raceways opposite each other, mounting holes: double row - standard (D), Nadella
| Design: | BASE-LINE |
|---|---|
| Size: | 25 |
| Bore diameter: | 6,5 |
| Width: | 101 |
| Height: | 33 |
| Lenght: | 4560 |
| Material: | standard |
We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.
