DGIR80-UK-2RS
Price on request
Available within 2-3 working days: 18
Product number:
1000998
Manufacturer:
Durbal
Weight:
12 kg
Product information "DGIR80-UK-2RS"

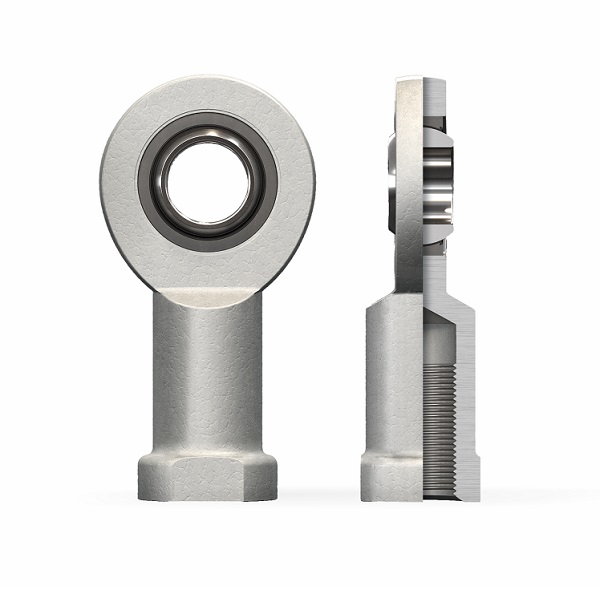

Standard rod end DGIR..-UK with pressed spherical plain bearing, sliding pair steel-PTFE, series E, female right hand thread, with lip seals on both sides, zinc plated, maintenance-free, Durbal

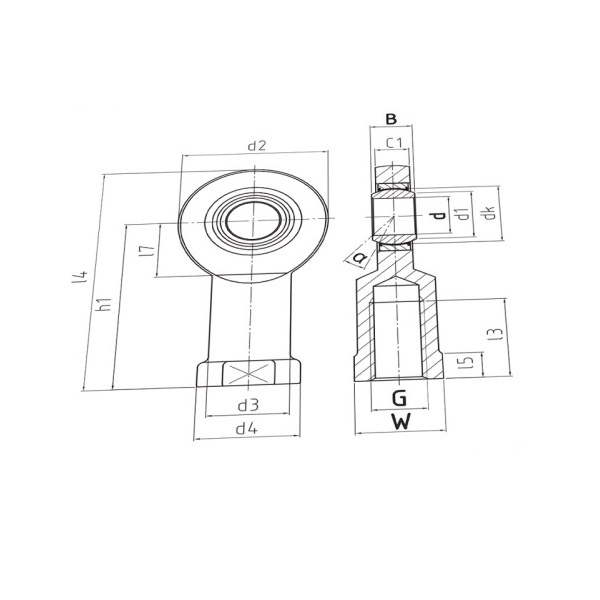

| Bore diameter: | 80 |
|---|---|
| Outer diameter: | 180 |
| Width: | 55 |
| Height: | 320 |
| Sealing: | seals on both sides |
| Thread type: | female thread right |
| Thread size: | M64x4 |
| Material: | standard |
Alternative articles to "DGIR80-UK-2RS"*
| EI80D-2RS |
| SI80ET-2RS |
| SI80C-2RS |
| 63418000 |
* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.
