KWE25-H-G4-V1
Product number:
1000164
Manufacturer:
INA
Weight:
1.44 kg
Product information "KWE25-H-G4-V1"

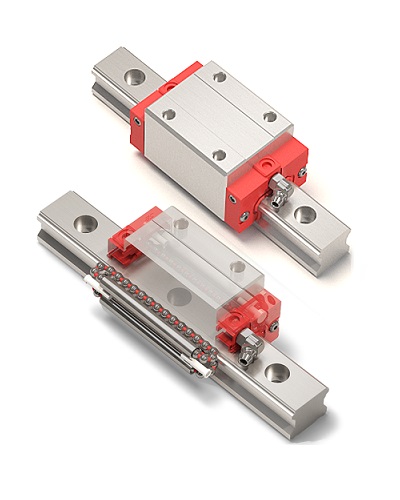

Runner block, Recirculating ball bearing and guideway assemblies, high narrow block design, INA
| Design: | block carriage |
|---|---|
| Size: | 25 |
| Width: | 48 |
| Height: | 33,5 |
| Height on rail: | 40 |
| Lenght: | 80,5 |
| Preload: | light preload |
| Precision class: | normal |
| Sealing: | standard |
| Material: | standard |
| Cage: | full-complement |
