22324-E1-XL-C3

€639.83

Ready for dispatch within 3-5 working days: 7

Product number: 1039658

Manufacturer: FAG

EAN: 4026677831927

Weight: 22 kg

Product information "22324-E1-XL-C3"

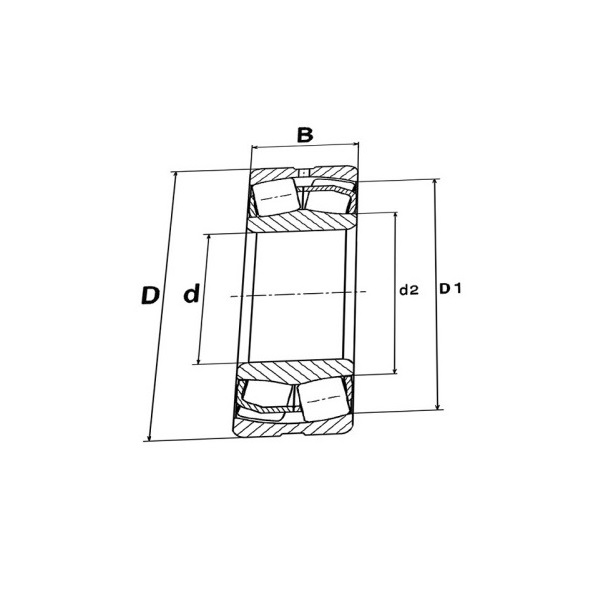

Spherical roller bearing, double row, 223..-E1 series, cylindrical bore, with steel cage, groove and lubrication holes on outer ring, FAG

Bore diameter:	120
Outer diameter:	260
Width:	86
Cage:	steel cage
Bearing clearance:	C3 (slightly increased)
Material:	standard
