3804-2Z

€19.47

Ready for dispatch within 3-5 working days: 12

Product number: 1098121

Manufacturer: INA

Weight: 0.016 kg

Product information "3804-2Z"

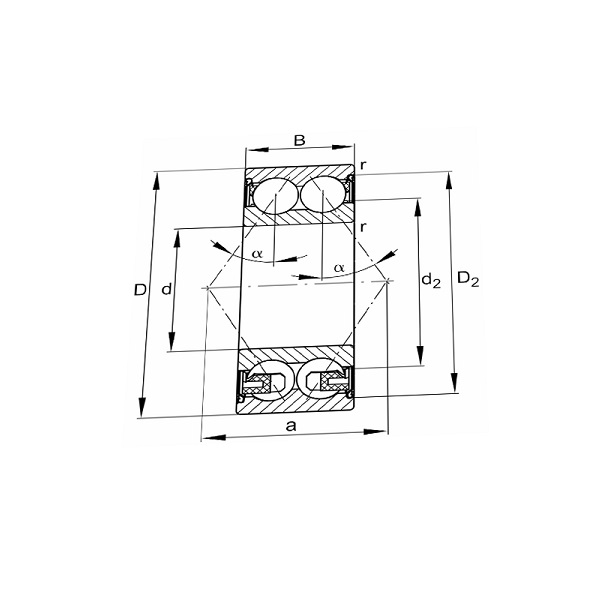

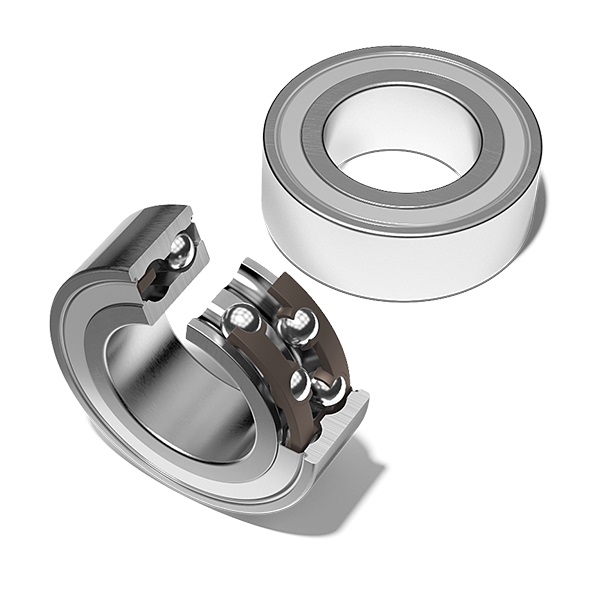

Double row angular contact ball bearing 38.., radial ball bearings, O-arrangement design with contact angle α = 25°, without filling slot, with plastic cage, steel shields on both sides, INA

Bore diameter:	20
Outer diameter:	32
Width:	10
Sealing:	cover shields on both sides
Cage:	polyamide, hard fabric
Bearing clearance:	CN (normal)
Material:	standard
