BEFN10-20-501
Regular price:
€19.93
Ready for immediate despatch: 10
Ready for dispatch within 2-3 working days: 29
Product number:
1002568
Manufacturer:
Durbal
Weight:
0.08 kg
Product information "BEFN10-20-501"

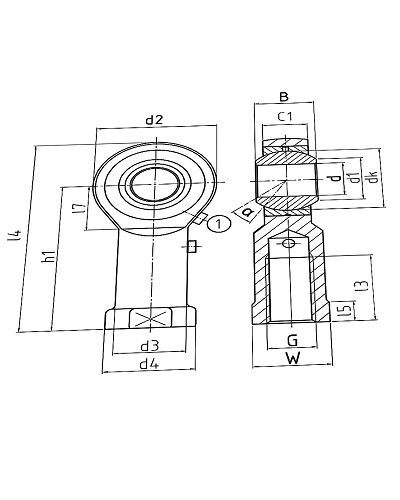

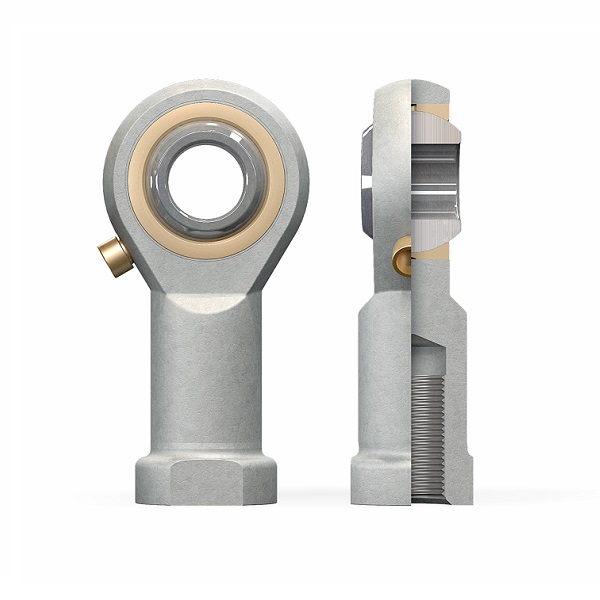

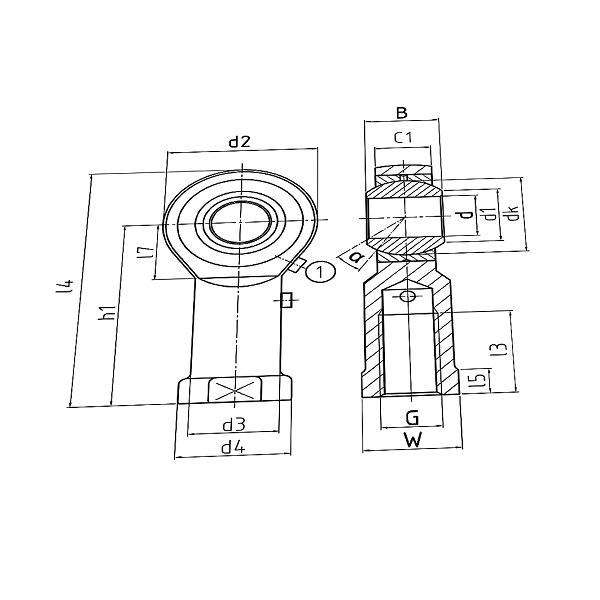

Heavy-duty rod end BEFN.. with pressed spherical-plain bearing, sliding pair steel-brass, series K, female right hand thread, zinc plated, relubricatable, Durbal
| Bore diameter: | 10 |
|---|---|
| Outer diameter: | 28 |
| Width: | 14 |
| Height: | 57 |
| Thread type: | female thread right |
| Thread size: | M10 |
| Material: | standard |
Alternative articles to "BEFN10-20-501"*
| GIS10 |
| KI10 |
| SFC10 |
| GIKR10PB |
| SIKAC10M |
* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.
