BEM12-60-502

€37.47

Ready for immediate despatch: 8

Ready for dispatch within 2-3 working days: 323

Product number: 1002254

Manufacturer: Durbal

Weight: 0.09 kg

Product information "BEM12-60-502"

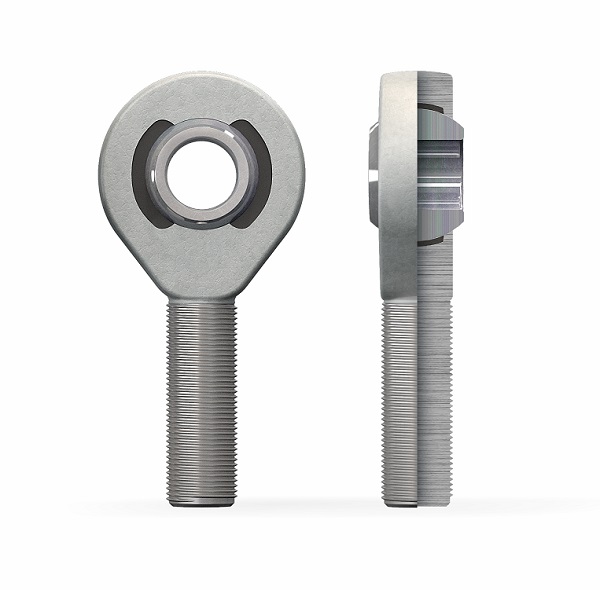

Heavy-duty rod end BEM.. in stainless steel with integral spherical-plain bearing, polyamid-PTFE-fibreglass-compound race Durbal-Glide, series K, male left hand thread, maintenance-free, Durbal

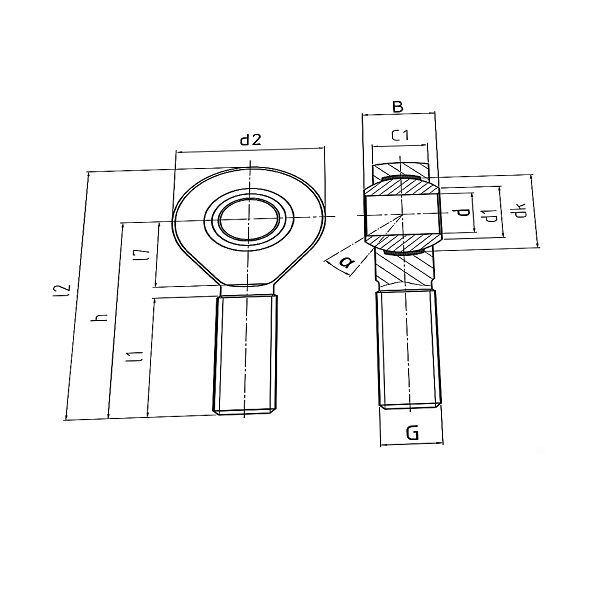

Bore diameter:	12
Outer diameter:	32
Width:	16
Height:	70
Thread type:	male thread left
Thread size:	M12
Material:	сorrosion-resistant
