BEM20-60-501

€81.24

Ready for immediate despatch: 3

Ready for dispatch within 2-3 working days: 118

Product number: 1002246

Manufacturer: Durbal

Weight: 0.35 kg

Product information "BEM20-60-501"

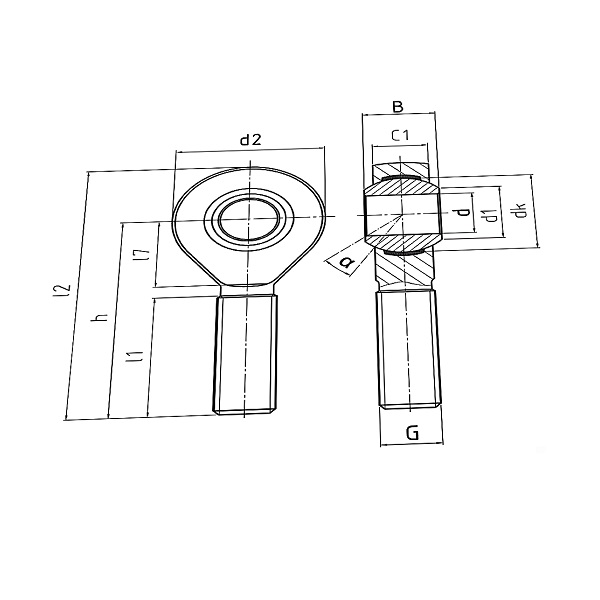

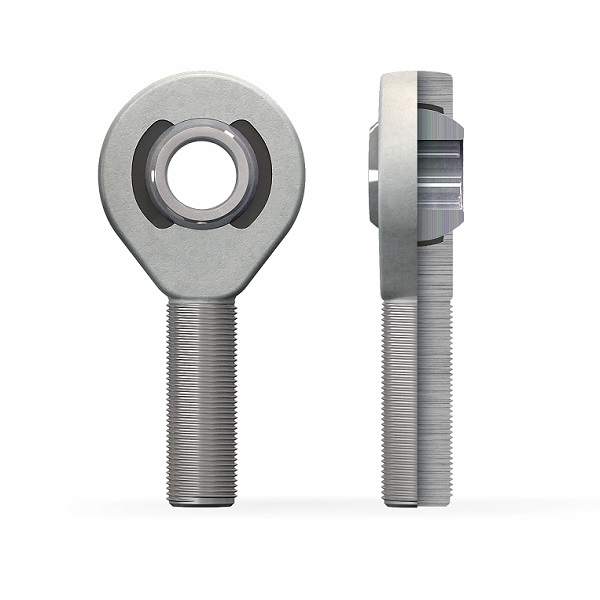

Heavy-duty rod end BEM.. in stainless steel with integral spherical-plain bearing, polyamid-PTFE-fibreglass-compound race Durbal-Glide, series K, male right hand thread, maintenance-free, Durbal

Bore diameter:	20
Outer diameter:	50
Width:	25
Height:	103
Thread type:	male thread right
Thread size:	M20x1,5
Material:	сorrosion-resistant

Alternative articles to "BEM20-60-501"*

GASW20RR
KA20-DNRBF
SMRCP20-IR
GAKSR20PS
SRAKB20FG

* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Heavy-Duty Rod Ends BEM-NIRO - Classic Line - Durbal
Rod Ends & Spherical-Plain Bearings - Durbal - Product Catalogue
