BEM3/4-20-502
Product number:
1002273
Manufacturer:
Durbal
Weight:
0.25 kg
Product information "BEM3/4-20-502"

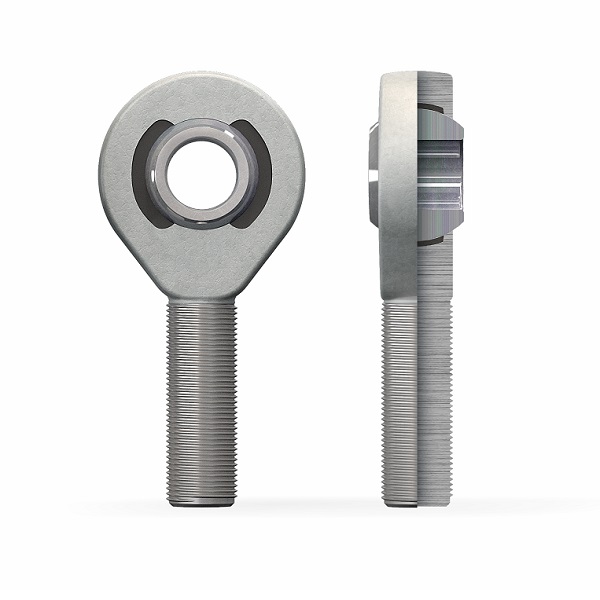

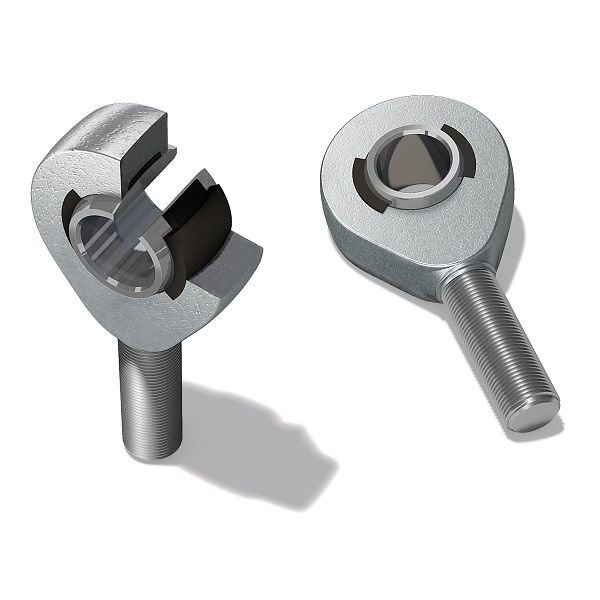

Heavy-duty rod end BEM.. with integral spherical-plain bearing, polyamid-PTFE-fibreglass-compound race Durbal-Glide, inch dimensions, male left hand thread, galvanized, maintenance-free, Durbal

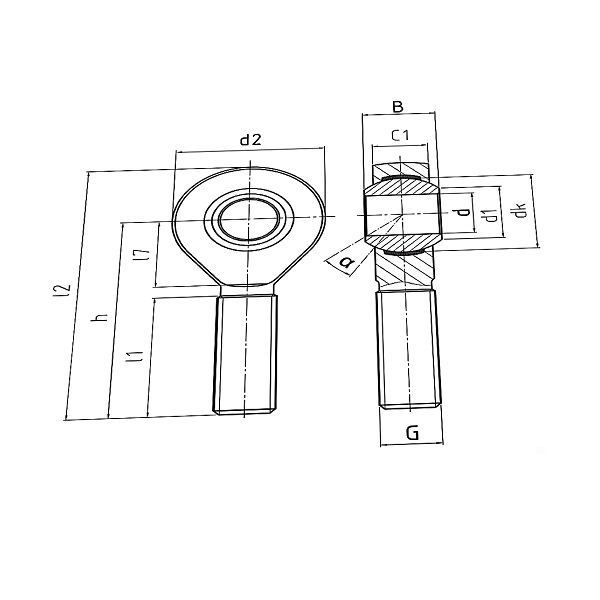

| Bore diameter: | .750 |
|---|---|
| Outer diameter: | 1.750 |
| Width: | .874 |
| Height: | 4.643 |
| Thread type: | Außengewinde links |
| Thread size: | 3/4-16 UNF |
| Material: | Standard |
