BRM1/1-01-502
Product number:
1002027
Manufacturer:
Durbal
Weight:
0.59 kg
Product information "BRM1/1-01-502"

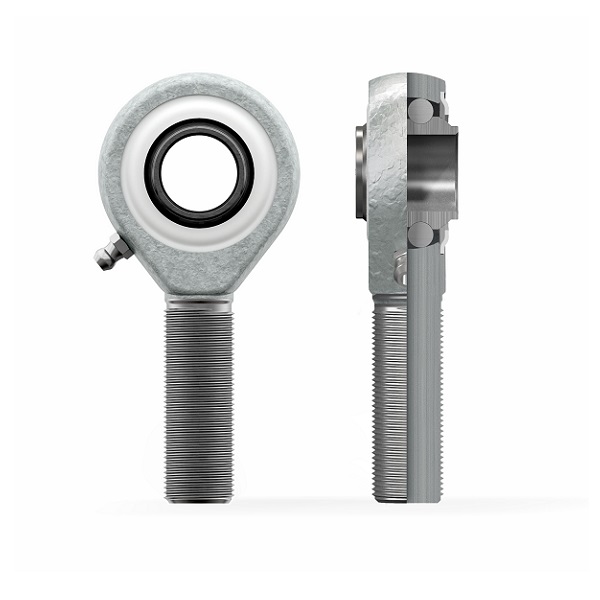

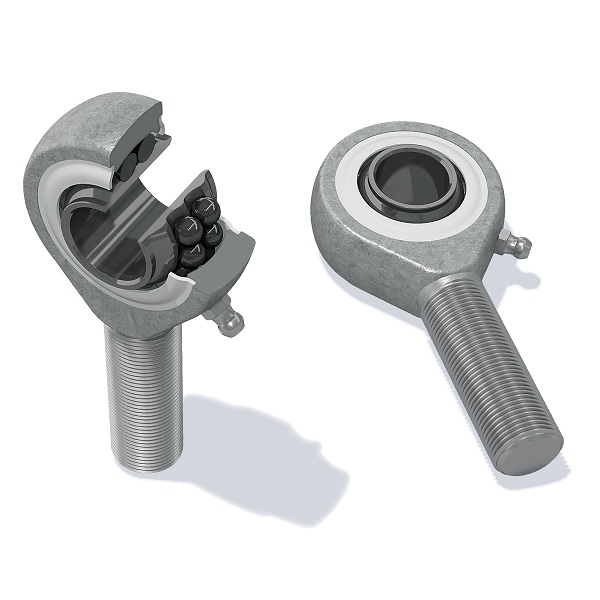

Heavy-duty rod end BRM.. with integral self-aligning ball bearing, inch dimensions, male left hand thread, cage design, galvanized, with shields on both sides, relubricatable, Durbal

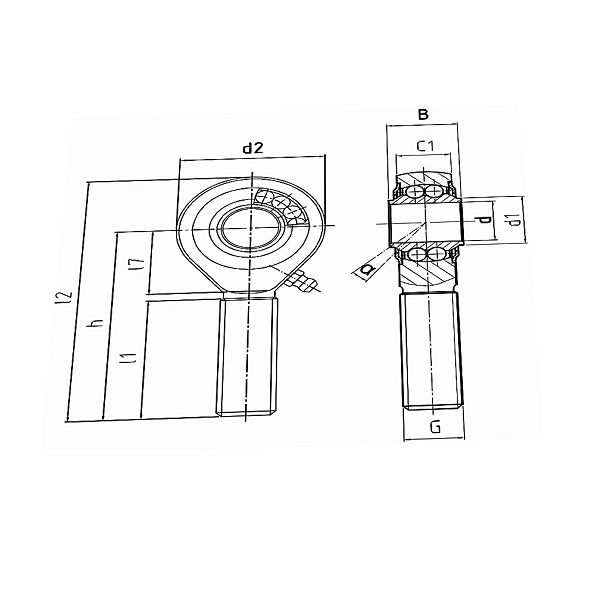

| Inner diameter: | 1.000 |
|---|---|
| Outer diameter: | 2.519 |
| Width: | 1.220 |
| Height: | 4.980 |
| Sealing: | cover shields on both sides |
| Thread type: | male thread left |
| Thread size: | 1/1-14 UNS |
| Material: | standard |
| Cage: | full-complement |
