BRTF10-00-501

€85.31

Ready for immediate despatch: 5

Product number: 1001882

Manufacturer: Durbal

Weight: 0.07 kg

Product information "BRTF10-00-501"

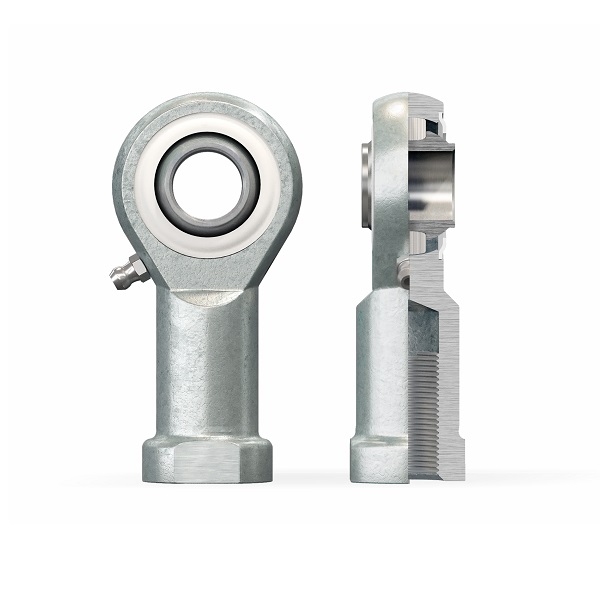

Heavy-duty rod end BRTF.. with integral self-aligning roller bearing, series K, female right hand thread, cage design, galvanized, with shields on both sides, relubricatable, Durbal

Bore diameter:	10
Outer diameter:	28
Width:	14
Height:	57
Sealing:	cover shields on both sides
Thread type:	female thread right
Thread size:	M10
Cage:	polyamide, hard fabric
Material:	standard

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Heavy-Duty Rod Ends BRTF - Premium Line - Durbal
Rod Ends & Spherical-Plain Bearings - Durbal - Product Catalogue
