BSTU2068-LLX-D2-GN-P4U-L588

Price on request

⚠ Out of stock? Available on order. Get in touch with us!

Product number: 1016050

Manufacturer: NTN

Weight: 1.19 kg

Product information "BSTU2068-LLX-D2-GN-P4U-L588"

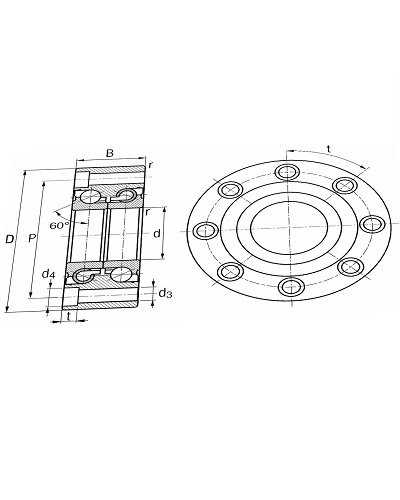

Double high precision bearing for ball screws, double row axial angular contact ball bearing, with light contact seals on both sides, NTN

Bore diameter:	20
Outer diameter:	68
Width:	28
Sealing:	seals on both sides
Thread size:	M6
Material:	standard
