CLK139 65x93

€77.80

Ready for dispatch within 3-5 working days: 26

Average lead time from new production (poss. with MOQ) in working days: 40-60

Product number: 1066571

Manufacturer: CMT Line

Weight: 1 kg

Product information "CLK139 65x93"

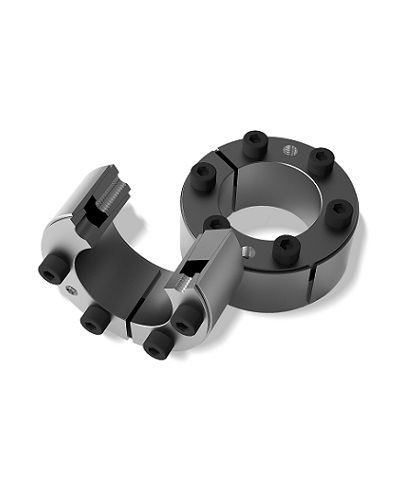

High-quality internal clamping set CLK139, backlash-free shaft-hub connection, self-centering design: radially flat - axially short, mounting with axial hub displacement, for low to medium torques, CMT Line

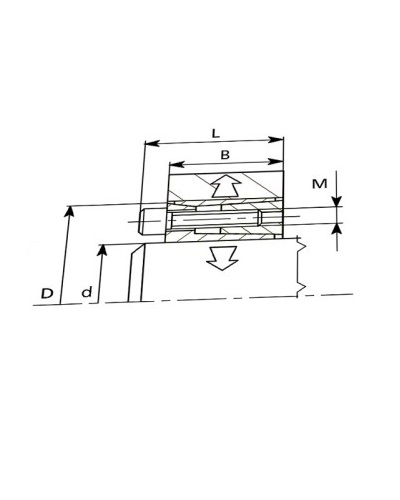

Bore diameter:	65
Outer diameter:	93
Width:	28
Thread size:	M8
T (Nm):	2400
F (kN):	110
Material:	standard

Alternative articles to "CLK139 65x93"*

Ringfeder - TI 9009 - 7008
Bikon - Bikon 4500
Tollok - TLK 139

* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
