CLK200 19x47

€15.78

Ready for immediate despatch: 2

Ready for dispatch within 3-5 working days: 120

Average lead time from new production (poss. with MOQ) in working days: 40-60

Product number: 1065107

Manufacturer: CMT Line

Weight: 0.22 kg

Product information "CLK200 19x47"

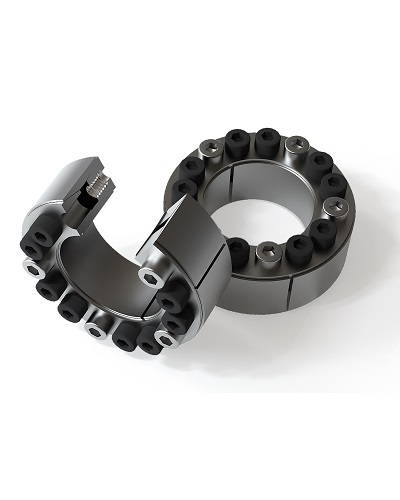

High-quality internal clamping set CLK200, backlash-free shaft-hub connection, non-self-centering design: radial standard height - axial short width, mounting without axial hub displacement, for medium to high torques, CMT Line

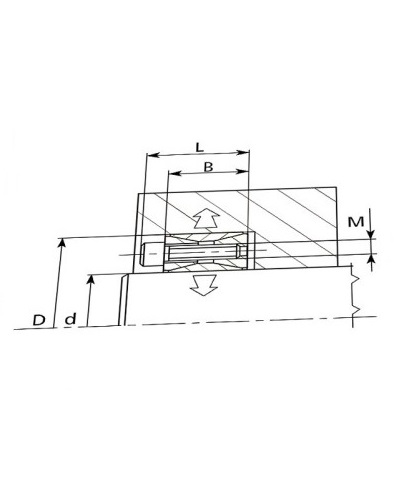

Bore diameter:	19
Outer diameter:	47
Width:	20
Thread size:	M6
T (Nm):	290
F (kN):	31
Material:	standard

Alternative articles to "CLK200 19x47"*

Ringfeder - RfN 7012
Bikon - Bikon 4000
Tollok - TLK 200
KTR - KTR 100
Ringspann - RLK 200

* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
