CLK401 240x305

€916.00

Ready for dispatch within 3-5 working days: 30

Average lead time from new production (poss. with MOQ) in working days: 40-60

Product number: 1066446

Manufacturer: CMT Line

Weight: 20.5 kg

Product information "CLK401 240x305"

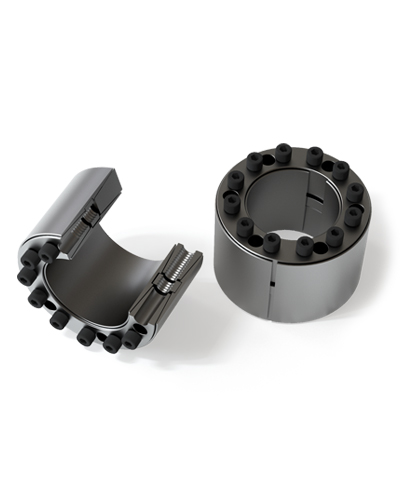

High-quality internal clamping set CLK401, backlash-free shaft-hub connection, self-centering design: radial standard height - axially medium lenght, mounting without axial hub displacement, for very high torques, CMT Line

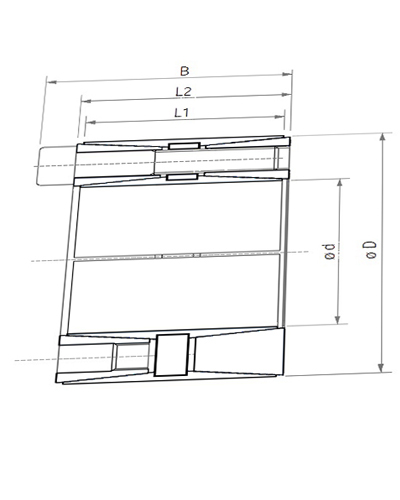

Bore diameter:	240
Outer diameter:	305
Width:	111
Thread size:	M16
T (Nm):	173500
F (kN):	1446
Material:	standard

Alternative articles to "CLK401 240x305"*

Ringfeder - RfN 7515 - 7009 - 7015.0 - 7015.1
Bikon - Bikon 1015.0 - 1015.1
Tollok - TLK 401 - 401.0 - 451 - 451.0
KTR - KTR 401 - 400.1
Ringspann - RLK 404

* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
