DG10x20-M10x1,5
Product number:
1001725
Manufacturer:
Durbal
Weight:
0.07 kg
Product information "DG10x20-M10x1,5"

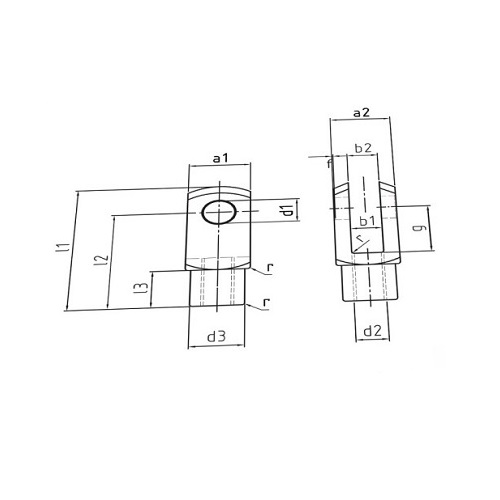

Clevises DG.. according to DIN 71752, form G, steel, surface galvanized, Durbal
| Bore diameter: | 10 |
|---|---|
| Width: | 20 |
| Lenght: | 52 |
| Thread size: | M10x1,5 |
| Material: | standard |
