DGIR70-UK-2RS
Product number:
1000997
Manufacturer:
Durbal
Weight:
8.6 kg
Product information "DGIR70-UK-2RS"

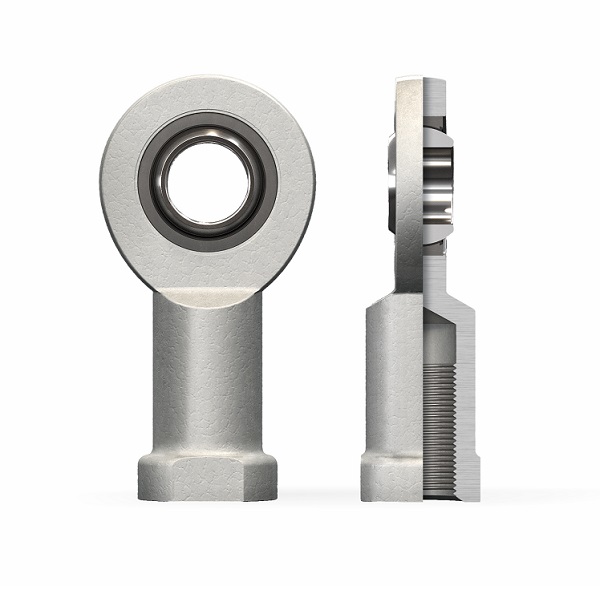

Standard rod end DGIR..-UK with pressed spherical plain bearing, sliding pair steel-PTFE, series E, female right hand thread, with lip seals on both sides, zinc plated, maintenance-free, Durbal

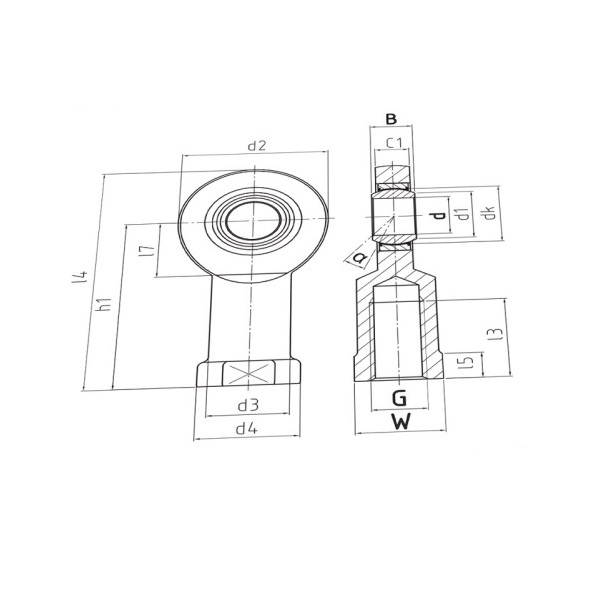

| Bore diameter: | 70 |
|---|---|
| Outer diameter: | 160 |
| Width: | 49 |
| Height: | 280 |
| Sealing: | seals on both sides |
| Thread type: | female thread right |
| Thread size: | M56x4 |
| Material: | standard |
Alternative articles to "DGIR70-UK-2RS"*
| EI70D-2RS |
| SI70ET-2RS |
| SI70C-2RS |
| 63417000 |
