DGK140-SK
Product number:
1001256
Manufacturer:
Durbal
Weight:
160 kg
Product information "DGK140-SK"

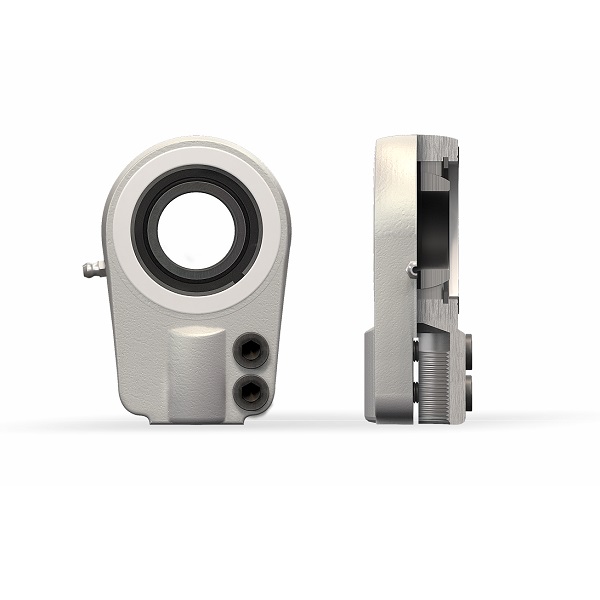

Hydraulic rod end DGK..-SK, housing made of forged heat-treated steel, with pressed spherical-plain bearing DGE..-ES, with slot and clambing arrangement, sliding pair steel-steel, female right hand thread, relubricatable, Durbal

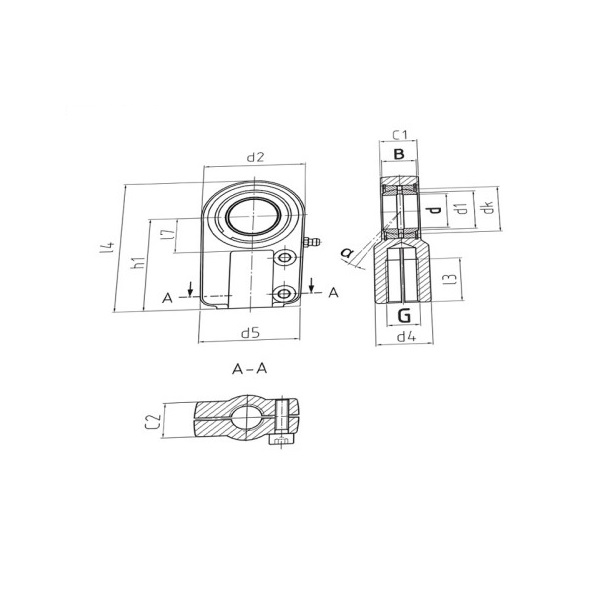

| Bore diameter: | 140 |
|---|---|
| Outer diameter: | 380 |
| Width: | 110 |
| Height: | 620 |
| Thread type: | female thread right |
| Thread size: | M160x4 |
| Material: | standard |
Alternative articles to "DGK140-SK"*
| FMA140D |
| WGAS140 |
| CGAS140 |
| R900317314 |
