DPOS10

€7.19

Ready for immediate despatch: 3

Ready for dispatch within 2-3 working days: 52

Product number: 1001022

Manufacturer: Durbal

Weight: 0.06 kg

Product information "DPOS10"

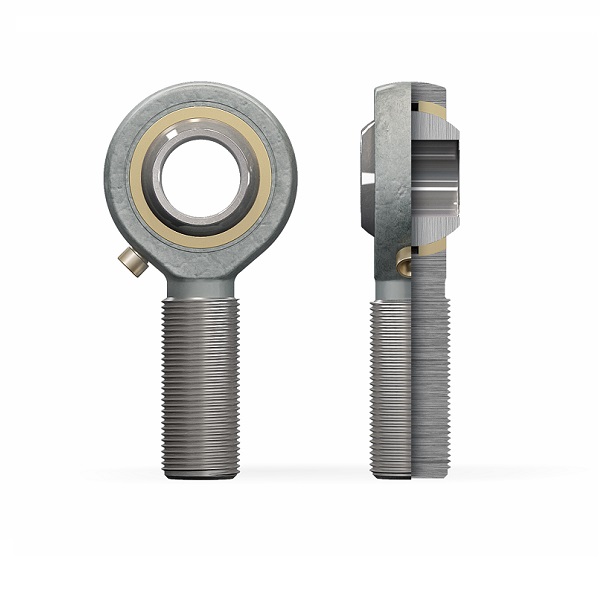

Standard rod end DPOS.. with pressed spherical plain bearing, sliding pair steel-brass, series K, male right hand thread, zinc plated, relubricatable, Durbal

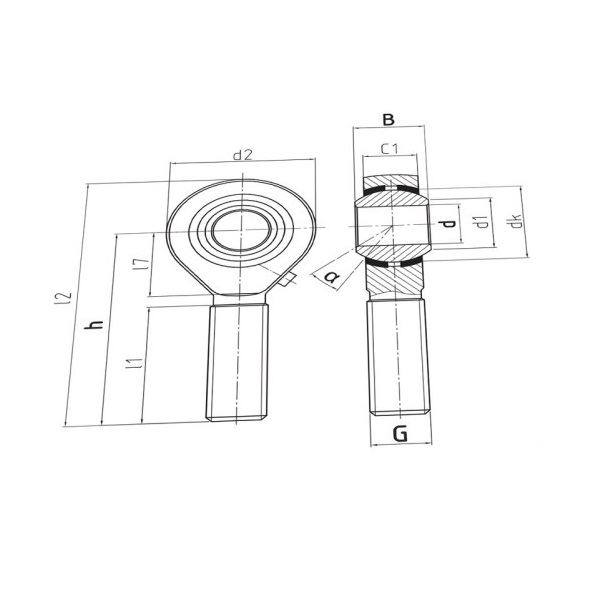

Bore diameter:	10
Outer diameter:	26
Width:	14
Height:	61
Thread type:	male thread right
Thread size:	M10
Material:	standard

Alternative articles to "DPOS10"*

GA10
RM10
SABP10S
TSM10
JAM10

* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Standard Rod Ends DPOS/DPOSL - Basic Line - Durbal
Rod Ends & Spherical-Plain Bearings - Durbal - Product Catalogue
