DSAL22-T/K

€27.20

Ready for dispatch within 2-3 working days: 96

Product number: 1000891

Manufacturer: Durbal

Weight: 0.48 kg

Product information "DSAL22-T/K"

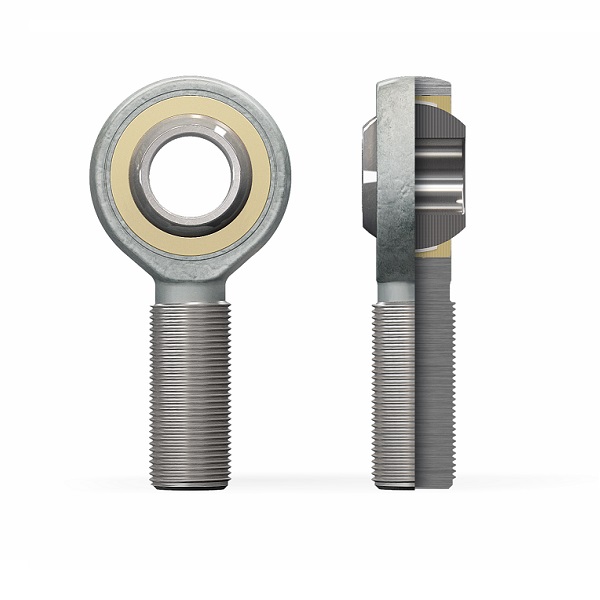

Standard rod end DSAL..-T/K with pressed spherical plain bearing, sliding pair steel-PTFE, series K, male left hand thread, zinc plated, maintenance-free, Durbal

Bore diameter:	22
Outer diameter:	54
Width:	28
Height:	111
Thread type:	male thread left
Thread size:	M22x1,5
Material:	standard

Alternative articles to "DSAL22-T/K"*

KALKB22F
SALJK22C
TSML22C
FBML22
63292200

* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Standard Rod Ends DSA-T/K - Basic Line - Durbal
Rod Ends & Spherical-Plain Bearings - Durbal - Product Catalogue
