DSI30-ES

€29.49

Ready for immediate despatch: 2

Ready for dispatch within 2-3 working days: 8

Product number: 1001149

Manufacturer: Durbal

Weight: 0.93 kg

Product information "DSI30-ES"

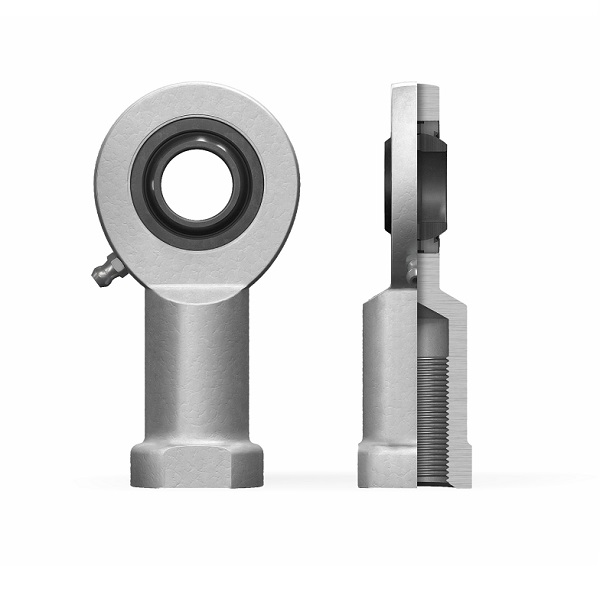

Standard rod end DSI..-ES with pressed spherical plain bearing, sliding pair steel-steel, series E, female right hand thread, zinc plated, relubricatable, Durbal

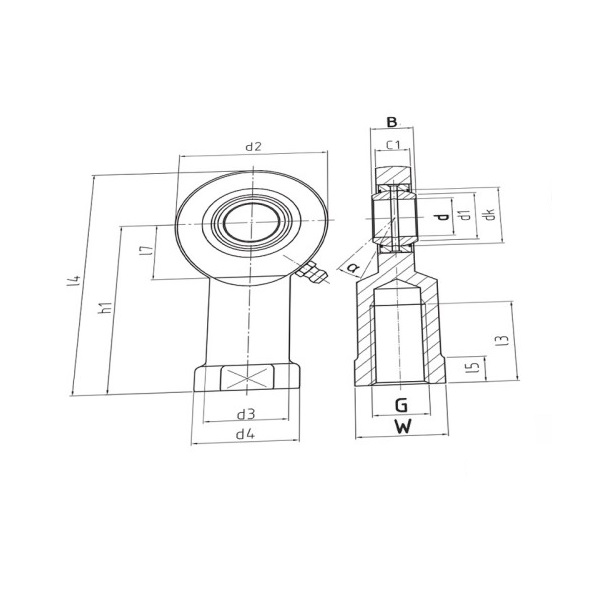

Bore diameter:	30
Outer diameter:	73
Width:	22
Height:	146,5
Sealing:	seals on both sides
Thread type:	female thread right
Thread size:	M30x2
Material:	standard

Alternative articles to "DSI30-ES"*

EI30
GIR30DO

* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Standard Rod Ends DSI-DSIL-E/ES (-2RS) - Basic Line - Durbal
Rod Ends & Spherical-Plain Bearings - Durbal - Product Catalogue
