EM25-20-502
Product number:
1002383
Manufacturer:
Durbal
Weight:
0.51 kg
Product information "EM25-20-502"

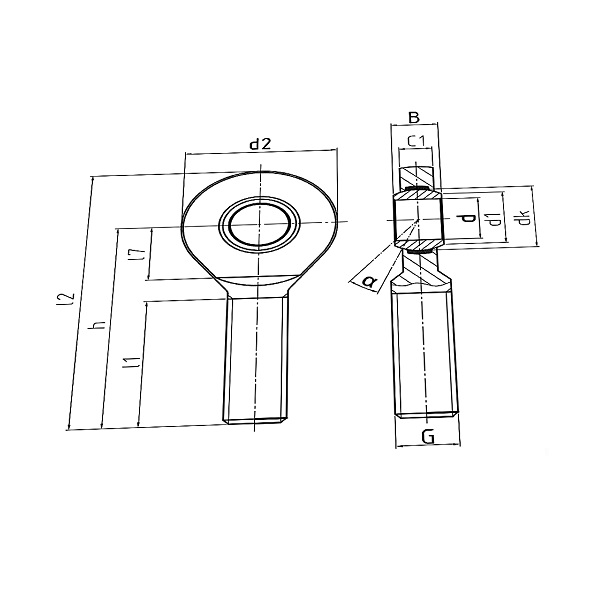

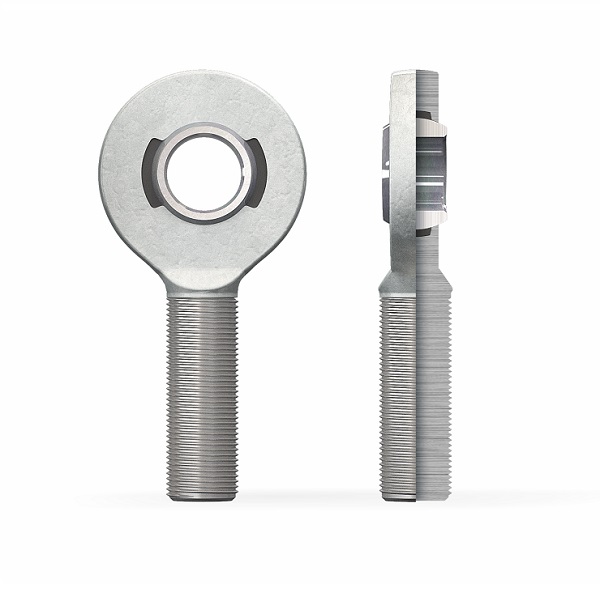

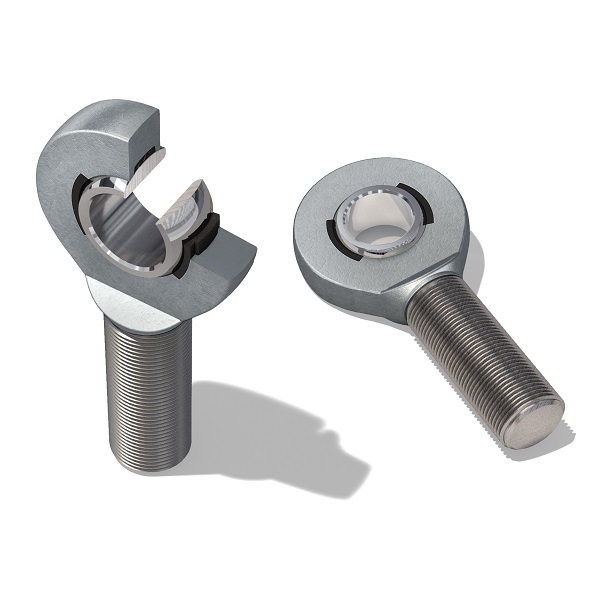

Heavy-duty rod end EM.. with integral spherical-plain bearing, polyamid-PTFE-fibreglass-compound race Durbal-Glide, series E/EH, male left hand thread, galvanized, maintenance-free, Durbal
| Bore diameter: | 25 |
|---|---|
| Outer diameter: | 62 |
| Width: | 20 |
| Height: | 125 |
| Thread type: | male thread left |
| Thread size: | M24x2 |
| Material: | standard |
Alternative articles to "EM25-20-502"*
| EAL25D |
| EAL25D-2RS |
| GAL25UK |
| GAL25UK-2RS |
| SAL25C |
* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
