N304-E-XL-TVP2

€39.59

Ready for dispatch within 3-5 working days: 29

Product number: 1047956

Manufacturer: FAG

EAN: 4012801592611

Weight: 0.15 kg

Product information "N304-E-XL-TVP2"

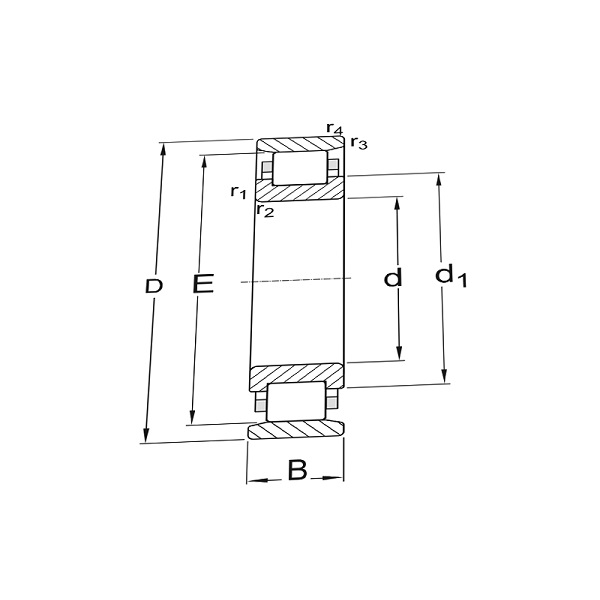

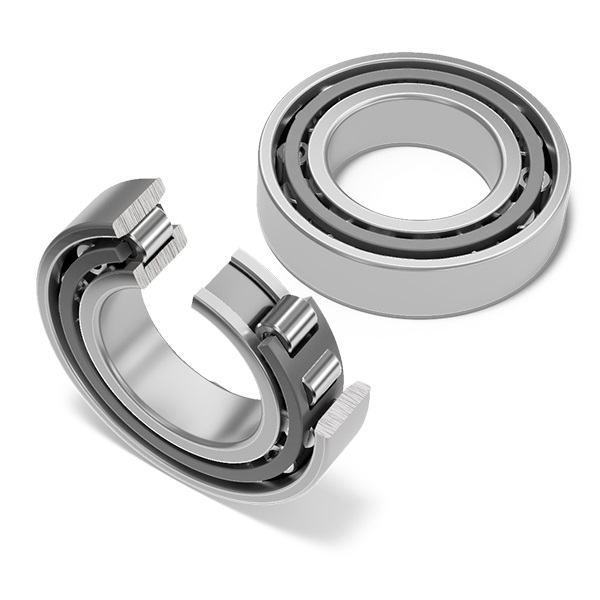

Single row cylindrical roller bearing N3.., non-locating bearing, outer ring without ribs, inner ring with two ribs, cylindrical bore, open, non-greased, separable, with solid plastic cage, FAG

Bore diameter:	20
Outer diameter:	52
Width:	15
Cage:	polyamide, hard fabric
Bearing clearance:	CN (normal)
Material:	standard
