NTA28-13H-370
Product number:
1070511
Manufacturer:
Nadella
Weight:
0.8 kg
Product information "NTA28-13H-370"

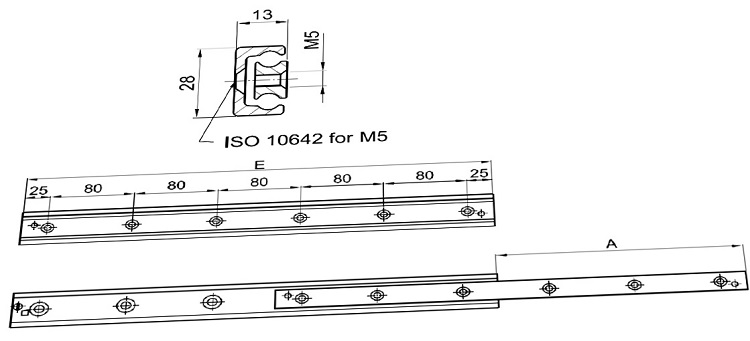

Telescopic guide, C-profile with height 28mm, width 13mm, partial extension (extension length approx. 50-70% of the installation length), double stroke, ball bearing guide, hardened, surface coated against corrosion, Nadella
| Width: | 13 |
|---|---|
| Height: | 28 |
| Lenght: | 370 |
| Material: | standard |
