NUTR3072

€52.80

Ready for dispatch within 1-2 working days: 128

Average lead time from new production (poss. with MOQ) in working days: 100-120

Product number: 1069940

Manufacturer: IDC

Weight: 0.691 kg

Product information "NUTR3072"

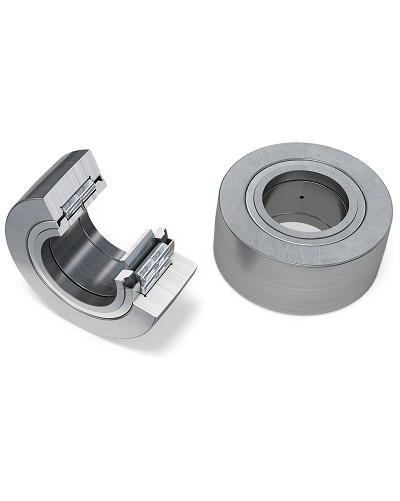

Yoke type track roller with profiled outer ring (contact optimized surface), inner ring and flange rings, full complement roller set, labyrinth seals on both sides, IDC

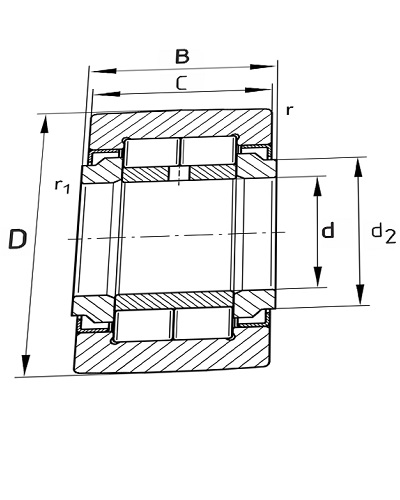

Bore diameter:	30
Outer diameter:	72
Width:	29
Sealing:	seals on both sides
Cage:	full-complement
Material:	standard

We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.

Yoke Type and Stud Type Track Rollers - IDC
