SLA45-P1-N
Product number:
1053061
Manufacturer:
NBS
Weight:
3.45 kg
Product information "SLA45-P1-N"

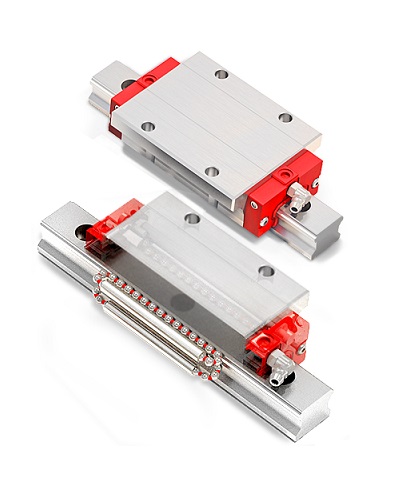

Runner block, Recirculating ball bearing and guideway assemblies, long flange design, NBS
(interchangeable with BRH45-A-L)
| Design: | flange carriage |
|---|---|
| Size: | 45 |
| Width: | 120 |
| Height: | 46 |
| Height on rail: | 60 |
| Lenght: | 173 |
| Preload: | light preload |
| Precision class: | normal |
| Sealing: | standard |
| Material: | standard |
| Cage: | full-complement |
Alternative articles to "SLA45-P1-N"*
| BRH45AL |
* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
