BRF10-00-501
Product number:
1002044
Manufacturer:
Durbal
Weight:
0.07 kg
Product information "BRF10-00-501"

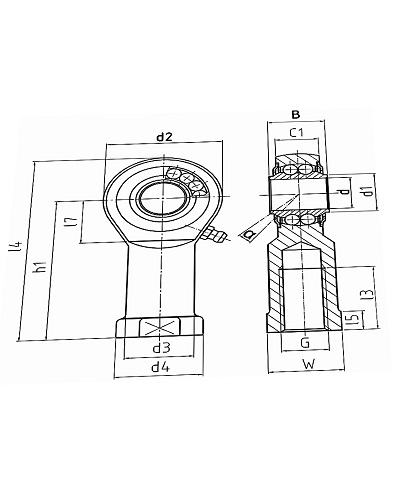

Heavy-duty rod end with integral self-aligning ball bearing, series K, female right hand thread, Durbal
| Inner diameter (mm): | 10 |
|---|---|
| Outer diameter (mm): | 28 |
| Width (mm): | 14 |
| Height (mm): | 57 |
| Sealing: | steel shields on both sides |
| Thread type: | female thread, right-hand |
| Thread size: | M10 |
| Cage: | cageless, full complement |
Alternative articles to "BRF10-00-501"*
| KUI10-ZZ |
| 63241000 |
* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.
