CLK250 60x70
€24.82
Available with a lead time of 3-5 working days: 44
Delivery time from new production (poss. with MOQ) in working days: 40-60
Product number:
1066525
Manufacturer:
CMT Line
Weight:
0.418 kg
Product information "CLK250 60x70"

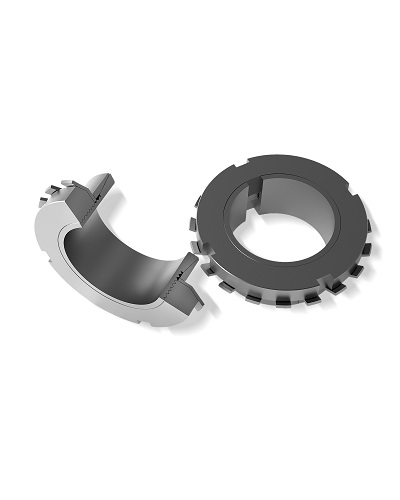

High-quality internal clamping set CLK250, backlash-free shaft-hub connection, non-self-centering design: radially flat - axially short, mounting with axial hub displacement, for low to medium torques, CMT Line

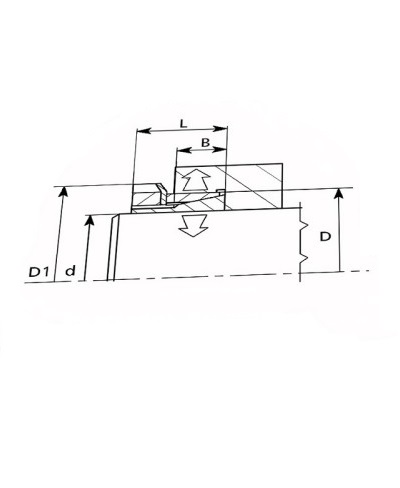

| Bore diameter: | 60 |
|---|---|
| Outer diameter: | 70 |
| Width: | 12 |
| Lenght: | 29,5 |
| T (Nm): | 830 |
| F (kN): | 32 |
| Material: | Standard |
Alternative articles to "CLK250 60x70"*
| Bikon - Bikon 5500 SP |
| Tollok - TLK 250 |
| KTR - KTR 125 |
| Ringspann - RLK 250 |
* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
